10000 Layers Chicken Layer Battery Cage Semi Automatic Save Space Adela
Product Details:
| Place of Origin: | Hebei,China |
| Brand Name: | BEST |
| Certification: | ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC |
| Model Number: | A or H type of cage |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | USD 65-200/set |
| Packaging Details: | Normal export packing 20ft / 40HQ container |
| Delivery Time: | 1-3 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets/month |
|
Detail Information |
|||
| Type: | A Type | Color: | Silver Or White |
|---|---|---|---|
| Occasion: | Poultry Farm | Material: | Carbon Steel |
| Product Name: | Cage System | Working Pressure: | 380v |
| Size: | 2.2m By 2.4m By 1.95m | Application: | Commercial Chicken |
| Feature: | Save Space | Usage: | Chicken |
| Item Name: | Aemi-automatic Cage System | Occassion: | Farm |
| Shape: | A Type | Tiers: | 3 Tiers,4 Tiers |
| Capacity: | 96-200 Birds | Area/Bird(Cm2): | 432cm2, 450cm2 |
| Lifespan: | More Than 20 Years | ||
| High Light: | 10000 Layers Chicken Layer Battery Cage,Semi Automatic Chicken Layer Battery Cage,Save Space battery cage system |
||
Product Description
Poultry Equipment For Semi-Automatic Cage System Of 10000 Layers Farm In Africa Adela
Many poultry farm change the chickens raise way from deep litter to use the machine in the farm,small farmer use the cage only,and the large farmer some start to choose the full-automatic system,like the automatic drinking system,automatic feeding system and automatic egg collection system and manure clean system,for the medium scale farm use cage only start to feel not shortcut,use the full-automatic the cost too high,now could choose the semi-automatic system,use the cage and machine make some work automatic
1. The cage choose

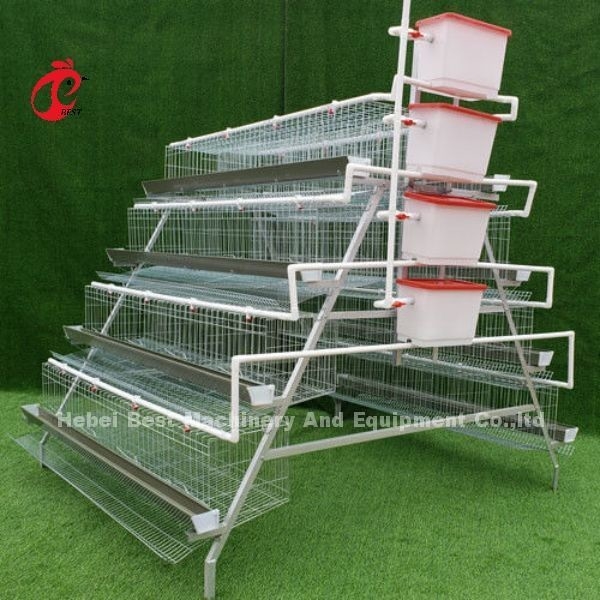

For the medium scale farm usually recommend the A type 4 tiers cage,large capacity and also good ventilation,include all accessories of installation cage,and the drinking system and feeding system,like the photo show one complete cage

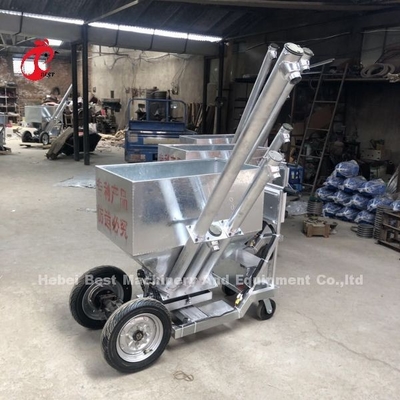

2. Feeding trolley machine for feeding work
Worker put the feeds into the feed trolley machine,turn on the power switch do the feeding work,only need one worker put the feeds in it when no feeds,work easy and save labor and time
Instructions for using the fee trolley
1) Close the air switch and light up the power display
2) The walking switch is placed in an open position,adjusting the walking speed switch to a suitable gear position,and the car begins to wall The speed switch is adjusted to zero,and the walk stops or turns off the walk switch
3) The upper material switch is placed in an open position,the upper material speed switch is adjusted to a suitable gear position,and the upper material motor work is started to load,or the upper material speed switch is placed in a suitable gear position first,and the upper material switch is turned on directly
4) At the end of the feed,put the feed speed switch in zero position,or turn off the feed switch directly,and stop the feed.Finally,turn off the power switch
3. Egg collection
The cage have the egg design way,customer pick up the eggs directly
4. Manure clean machine
For the cage system could choose the scraper machine,cheaper and easy to clean,simplicity of operator,keep the farm clean and reduce the smell,save more labor for the manure clean work
Change the manure to fertilizer

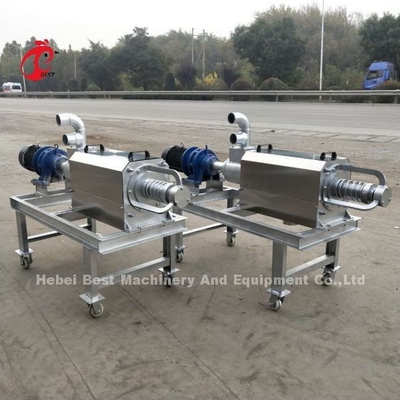

Manure dry machine,could deal with the chicken manure,turn garbage into treasure.After dehydration and separation of solid manure,the extruded solid material after processing is almost odorless,and the viscosity is small and can be used directly as fertilizer,use for the corn ,grains farm,the corn and grains also could do the chicken feeds as the material,make the farm become a recycling farm
