Modern Design Battery Layer Cage H Type Poultry Farm Cage ISO14001 Emily
Product Details:
| Place of Origin: | Hebei, China |
| Brand Name: | BEST |
| Certification: | ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC |
| Model Number: | BEST |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 65-200/set |
| Packaging Details: | Normal export packing 20ft / 40HQ container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Set/Month |
|
Detail Information |
|||
| Product Name: | H Type Poultry Layer Cage | Key Word: | Battery Layer Cage, Poultry Farm Cage |
|---|---|---|---|
| Model Number: | A Or H Type Of Poultry Cage | Tiers: | 3 Tiers, 4 Tiers, 5 Tiers, 6 Tiers, 7 Tiers, Etc |
| Capacity: | 240 Birds, 180birds, 128birds, 160 Birds, 256 Birds, 500 Birds | Area/bird(cm2): | 432cm2, 450cm2 |
| Applicable Industries: | Poultry Farms | Weight: | 100 KG |
| Life Time: | 15 - 20 Years | Materials: | High Quality Low Carton Steel Wire |
| High Light: | H Type Layer Poultry Farm Cage,Battery Layer Poultry Farm Cage,H Type Battery Poultry Farm Cage |
||
Product Description
Modern Design H Type Automatic Egg Poultry Farms Battery Layer Chicken Cages Chicken Cage Emily

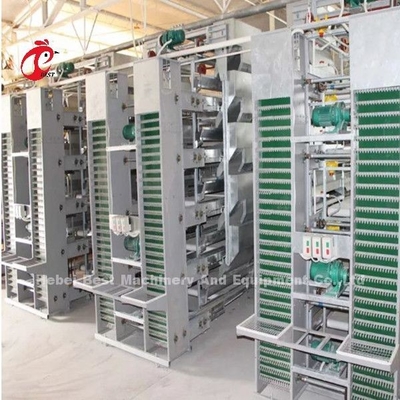

Introduction of h type automatic battery layer cage
H frame egg layer cage system is equipped with full automatic machine
It can be feed a large capacity which can up to 30000 birds in one chicken house, reduces the land area and building cost than A type battery cage
H type automatic cage come with automatic feeding, drinking, egg collection,manure cleaning system and environment control system, you just need 1 person to operate one farm
Specification of h frame automatic battery layer cage
| Product name | H type automatic battery cage |
| Materials | The cage mesh is made of zinc aluminum alloy wire, cage frame is stamped by GSM275 steel sheets. |
| Tiers | 3/4/5/6/8 tiers |
| Capacity | 180/240/300/360/544 birds/set |
| Size | 2250*600*430mm, 2400*700*640mm, etc |
| Area of chickens | 450cm2/494cm2 |
| Raising quantity | More than 20000 birds |
| Warranty of h type cage | 15-25 years |
Details battery layer cage parting showing
1) Cage mesh is made of zinc aluminum alloy wire,275g/m2 hot deep galvanized, which has a smooth surface, corrosion resistance and long service life
2) Cage frame structure is galvanized steel with 2mm thickness, very stable with more fulcrum and the entire cage system without welding
3) Automatic feeding system
In this feeding system, it comes with feed hoppers. Feed is distributed automatically to feed hoppers from the feed soils by spiral augers.The auger materials made by South Africa with best quality. The feeding hopper fully enclosed design to avoid dust, reduce the incidence of chicken respiratory disease
4) Automatic drinking system
There are 2 to 3 nipple drinkers for each two cage sections on the PVC pipes
The “V” shape leakage gutter underneath the water pipes, holds the water drops and prevent the drops to the manure belt, therefore a drier manure is obtained
5) Automatic egg collection system
Automatic egg collections includes egg collection machine, egg collection belts and hooks
It can collect up to 25,000 eggs per hour, reduce the egg breakage which caused by manual work
6) Automatic manure removal system
H type automatic chicken cage come with belt cleaning machine,the manure are collected from each tier and transported to the horizontal manure conveyor, it can be transported to the storage or through vertical manure conveyor transport to the dung vehicles
Our services
With state of the art facilities,powerful R & D team and rigorous quality management system, Best has owned undoubtedly the strength to become your preferred partner to build modern automated poultry farms.
In addition,we have an experienced,quick-response technician team which helps customers with poultry farm location planning,chicken house design and construction and equipment installation as well as provides product upgrade and free technical consulting services
Poultry project design
You just need to tell us your raising quantity and land sizes, our technician teams will recommend you suitable model and house design drawing for you
